The micro-bubble technology is an advanced water treatment method that injects ultra-small air bubbles into raw water, aggregating and floating contaminants for efficient purification.
This technology attaches micro air bubbles to pollutant particles, allowing them to rise to the surface, where they can be effectively removed.
Provides up to 40 times faster treatment speed than traditional water treatment methods, enabling rapid purification even in emergency water treatment scenarios.
Minimizes energy usage, allowing for cost-effective and high-efficiency water treatment, with reduced installation and maintenance costs.
This technology is versatile and can be applied in multiple water treatment environments, including wastewater treatment, algae removal, and is scalable from mobile equipment to large-scale plant facilities.
By using micro-bubbles, it achieves a very high SS removal rate, significantly improving the quality of the final discharge water.
The micro-bubble system is designed for semi-permanent use, requiring minimal replacement parts or consumables, allowing for long-term operation and reduced maintenance costs.
Purifies various water sources such as river water, rainwater, and brackish water for safe drinking water
Quickly purifies industrial and domestic wastewater to meet discharge standards
Quickly purifies industrial and domestic wastewater to meet discharge standards
Rapidly removes organic and suspended matter in sewage, restoring water quality

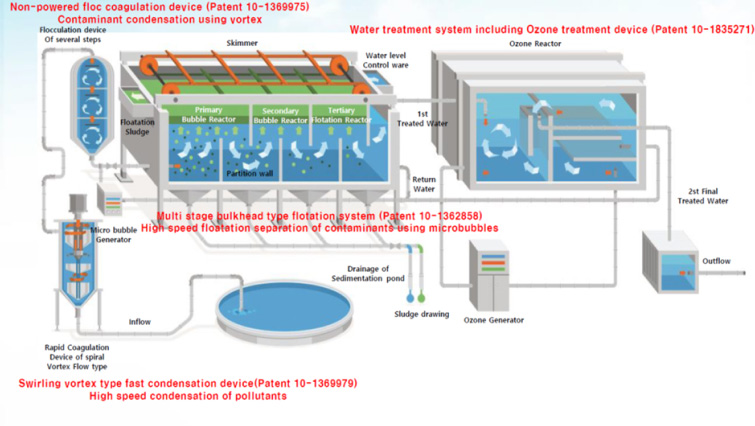

Micro-bubbles are injected into the raw water to aggregate suspended solids and contaminants, causing them to rise to the surface
The aggregated suspended solids are trapped in the filtration layer, and purified water is ultimately discharged.
The system is semi-permanently designed for long-term use without replacement, with an efficient backwashing process that maintains filtration performance through regular cleaning.
Injects micro-bubbles into raw water to bond with contaminants, facilitating the aggregation and flotation of pollutants
Compresses air to generate micro-bubbles and assists in contaminant removal during backwashing
Made from high-strength material, the filtration module effectively removes contaminants and is designed for easy maintenance
Monitors and controls real-time process data to maintain optimal operating conditions
Target | SS | BOD | ECOD | T-N | T-P | E-Coil |
Inflow | 20.4 | 24.0 | 15.5 | 8.24 | 0.75 | 174,400 |
Outflow | 2.0 | 2.1 | 4.2 | 5.013 | 0.12 | 500 |
Effciency | 90.2 | 91.3 | 72.9 | 39.2 | 84.0 | 99.7 |
(Unit:mg/L)
This technology attaches micro air bubbles to pollutant particles, allowing them to rise to the surface, where they can be effectively removed.
The semi-permanent nature of the micro-bubble technology greatly reduces ongoing operating costs.
Its high suspended solids (SS) removal rate improves the quality of discharge water, contributing to water quality improvements in rivers, oceans, and other diverse environments.
Custom solutions are provided to meet different needs, such as potable water treatment, wastewater treatment, and algae removal, ensuring ease of installation and operation.
